GAMA Electronics Long Range RF Remote 240VAC Capacitor Start AC Motor Reversing Control
En stock
1.44 kg
Sí
Nuevo
Amazon
USA

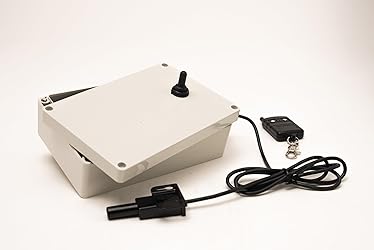

- The LRF240VPR1L is an RF receiver operating at a fixed frequency of 340 MHz. The receiver operates from 240VAC input power and provides a reversing output for use with four/six wire lead AC motors rated up to 1.5- Horsepower. Up to 30 transmitters can be programmed to a single receiver. The receiver has terminal blocks for connecting the input power and output relay contacts to the motor. Each transmitter has a unique address that is transmitted when a button is pressed. A “program” button is provided on the receiver to program the transmitter(s) address into the receiver’s memory. An LED on the receiver indicates the receiver’s programming status and illuminates when the receiver is energized. The receiver is encased in a waterproof enclosure. The operating range is 500 feet under normal conditions. Operating temperature range: – 0° F to 160° F. The transmitter has two buttons assigned to the motor output. The up (^) button runs the motor in one direction and down (v) button runs the motor in the opposite direction. Maximum ratings: Power for the receiver can be in the range of 200 to 260 VAC. The relay contacts are rated at 20 Amps. Dimensions: Receiver dimensions are approximately 5.75″ L x 4″ W x 2.5″ H.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
Radio Frequency 340 MHz NEMA 4 enclosure The relay contacts are rated at 20 Amps and 1.5H.P. External antenna Power for the receiver can be in the range of 200 to 260VAC Receiver dimensions are approximately 5.75″ L x 4″ W x 2.5″ H.
