Compound Bench Drilling Slide Table Worktable Milling Working Cross Table (DIY for home)

Color:

Diy for Home

Detalles del producto

Disponibilidad
En stock

Peso con empaque
12.61 kg

Devolución
No

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

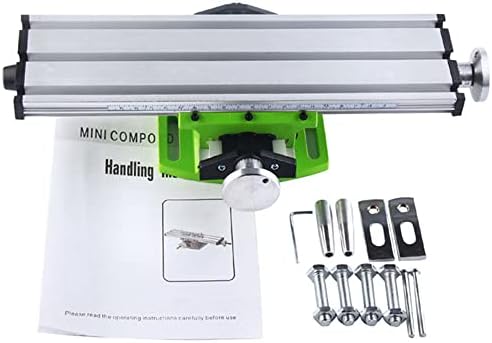

Mini compound bench BG6300.The mini compound bench is especially suitable for use with the drill stand BG6112,BG6109B and bench drill machine of the BG5158 series.It may also be used with other suitable machine.The table is made of aluminium with adjustable dovetail gibs,ensuring minimum play
Three T-slots of the standard size 15x 8x 6mm are provided.The movable ruler scale eases the positioning of the table.Zero adjustable handwheels are calibrated to provide 1.25mm movement per revolution.One devision equals 0.05mm.Travel is 200mm on the X axis and 50mm on the Y axis.Table size is 310x 90mm with overall height 80mm.Two clamps are included
Working table with three T shaped groove, standard size of the slot is 15x8x6mm. The ruler in front is movable for positioning. Zero adjustment handwheel rotates a circle of 1.25mm and a grid of 0.05mm. The X axis stroke distance is 200mm, the Y axis stroke distance is 50mm
Precise scale for better working, precise drilling and milling. Working table size is 310x90mm and the height of 78mm, including two working clamps
Very useful tool for electric drill, mini bench drill, milling machine and drilling machine

$164,72

49% OFF

$84,47
