Artículo: AMZ-B0BM8V1KK4

waveshare

waveshare Sense HAT (C) for Raspberry Pi 4/3 B+/3 B/2 B/B+/3 A+/A+/Zero/Zero W Onboard Multi Powerful Sensors Supports External Sensor with 40PIN GPIO Extension Header and I2C Interface

Detalles del producto

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
No

Condición
Nuevo

Producto de
Amazon

Viaja desde
USA

Sobre este producto

Overview If you want to DIY the Raspberry Pi into a robot that can detect motion posture and orientation, or if you want the Raspberry Pi to collect data such as temperature, humidity, and atmospheric pressure in the environment, this HAT can just meet the above requirements. Features 1.Sense HAT (C) is Specially Designed For Raspberry Pi Onboard Gyroscope, Accelerometer, Magnetometer, Barometer,Temperature And Humidity Sensor, Etc. Communicated Via I2C Interface, Supports External Sensors 2.Standard Raspberry Pi 40PIN GPIO Header Customized For Raspberry Pi Series Board Product Parameters Operating Voltage:3.3V Communication Interface:I2C Logic Voltage:3.3V Product Size:65 x 30.5(mm) Accelerometer Features: Resolution: 16-bit Range (optional): ±2, ±4, ±8, ±16g Gyrometer Features: Resolution: 16-bit Range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec Magnetometer Features: Resolution: 16-bit Range: ±4912µT Barometer Characteristics: Resolution: 24-bit pressure data, 16-bit temperature data; Measurement Accuracy (at room temperature): ±0.025hPa Measuring Range: 260 ~ 1260 hPa Measurement Rate: 1 Hz - 75 Hz Temperature And Humidity Sensor Characteristics: Measurement Accuracy (humidity): ±2% rH Measuring Range (humidity): 0% ~ 100% rH Measurement Accuracy (temperature): ±0.2°C Measuring Range (humidity): -30 ~ 100°C Color Recognition SensorResolution: 4 channel RGBC, 16 bits per channel AD Conversion ChipResolution: 16 bits Package Content Sense HAT (C) x1 2x20PIN female header x1 Screws pack x1 Note Online Development Resources is provided , please contact us if you have any problem .

$75,10

44% OFF

$41,72

$75,10

44% OFF

$41,72

Envío gratis

Llega en 16 a 26 días hábiles

Tienes garantia de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

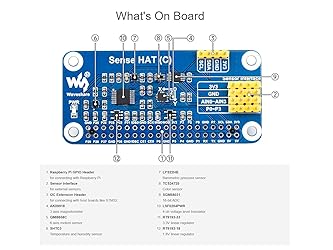

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard QMI8658C+AK09918 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic.Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment Onboard LPS22HB barometric pressure sensor, allows monitoring the environment.Onboard TCS34725 color sensor, identifies the color of nearby object Onboard SGM58031, 4-ch 16-bit precision ADC, AD expansion to support more external sensors Brings I2C control pins, for connecting other host boards like STM32.Comes with development resources and manual (examples for Raspberry Pi/STM32)
