Artículo: AMZ-B07V579YK2
waveshare
waveshare 1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit High Color (65K Colors) SPI Interface Compatible with Arduino Raspberry Pi Jetson Nano STM32
Color:
1.5inch RGB OLED Module
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

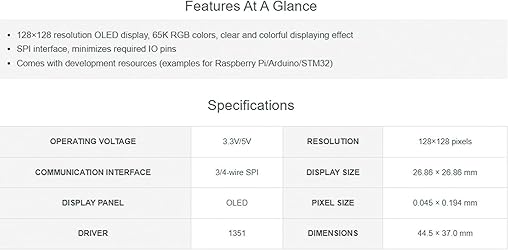

- 1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interface Overview This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface. Features 128x128 high resolution, 65K colors, clearly displays colorful images Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly) Support interface: 4-wire SPI, 3-wire SPI Controller: SSD1351 Resolution: 128(H)RGB x 128(V) Dimension: 26.855（H）x 26.855（V）mm Pixel size: 0.045(H) x 0.194(V) mm Display color: 65K color OLED and its controller The built-in driver used by this OLED is SSD1351, which is a 128RGB * 128 Dot Matrix OLED/PLED controller with a 128*128*18bit SRAM as a display buffer area, which supports two color depths of 262k and 65k. And supports 8bit 8080 parallel, 8bit 6800 parallel, 3wire-SPI and 4wire-SPI and other communication methods. This module selects 4wire-SPI and 3wire-SPI as the communication method, which reduces the area of the module and saves the IO resources of the controller. Description VCC---3.3V/5V Power input GND---Ground DIN---Data input SCL---Clock input CS ---Chip select, active low DC---Data/command signal selection, low level indicates command, high level indicates data RST--Reset signal, active low Online Document/ User Manual: //bit.ly/3TriWqs Package Content 1.5inch RGB OLED Module x1 PH2.0 7Pin x1
$34,79
31% OFF
$23,99
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$34,79
31% OFF
$23,99
20% OFF adicional al pagar con Deuna
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
This is a general 1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color (65K colors),clearly displays colorful images, with embedded controller, communicating via SPI interface. Driver: SSD1351. Display color: RGB, 65K colors Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor Dimension: 44.5 x 37 (mm),Operating voltage: 3.3V / 5V,Viewing angle: >160°,Interface: 4-wire SPI, 3-wire SPI
