WindyNation 12V Linear Actuator + Power Supply + Up Down DPDT Switch + Mounting Brackets + Connectors (12" Linear Actuator, Maintained Switch)
Size:
12" Linear Actuator
Color:
Maintained Switch
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
2.11 kg
2.11 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

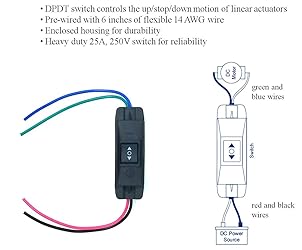

- Linear actuators are actuators which create motion in a straight line. Unlike a motor, which creates circular motion, a linear actuator can be used with any application that requires moving something in a straight line (e.g. up and down or side to side). Windy Nation LIN-ACT1 Series Linear Actuators are a powerful and reliable linear actuator for small to medium loads. We designed our linear actuator with pre-lubricated metal gears, pre-installed limit switches, and with an IP65 (suitable for outdoor use) water resistance rating. Included with your purchase is a linear actuator up/down switch, AC to DC power supply, and linear actuator mounting brackets. There are two options for the up/down control switch: Momentary and Maintained. A momentary switch will only supply power to the actuator when the button is actively engaged by your finger. When you release the button, power is cut to the actuator and it stops. The maintained switch will continued to supply power to the actuator until it is manually turned off by the end user (A light bulb switch is a maintained switch, which means it will stay on until you turn it off).
$312,93
44% OFF
$173,85
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$312,93
44% OFF
$173,85
20% OFF adicional al pagar con Deuna
Envío gratis
Llega en 12 a 16 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Includes 12 volt 225 lbs Linear Actuator (multiple stroke lengths available) with Mounting Brackets, AC to DC 12 Volt Power Supply, MAINTAINED Up/Down Switch, and connecting wires. See photo gallery for all included items. Includes MAINTAINED Up/Down Switch: The maintained switch will continue to supply power to the actuator until it is manually turned off by the end user (A light bulb switch is a maintained switch, which means the light bulb will stay on until you manually turn the switch off). Complete kit allows end user to mount linear actuator, power the linear actuator from an AC power source (wall outlet), and control the up/down movement of the linear actuator using the included switch. Actuator Stroke Length = (options range from 2" to 30"), (, Travel speed = 0.39 inches/sec (10 mm/s). Actuator Maximum Dynamic Load = 225 lbs (900N), Actuator maximum current draw = 2.2 Amps Linear actuator is IP65 rated (suitable for outdoor use). Exterior material of linear actuator is 6061 Aluminum (powder coated black)
