Artículo: AMZ-B0DD7PQWTT
UeeKKoo

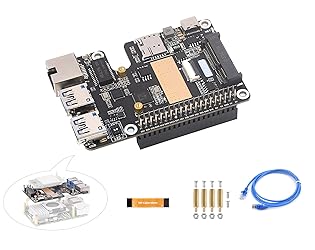

PCIe to MiniPCIe/Gigabit Ethernet/USB 3.2 Gen1 HAT for Raspberry Pi 5, HAT+ Standard, Supports MiniPCIe Interface 4G Module, Extend PCIe Interface to Two USB 3.2 Gen1 Ports, Support Multi-System
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Features 1. This adapter board supports converting the PCIe interface to USB3.2, MiniPCIe and Gigabit ETH, which is compatible with Raspberry Pi 5. It is compatible with multiple MiniPCIe 4G modules or MiniPCIe devices, supports Gen2 mode and high-speed communication 2. Designed for Pi 5, with HAT+ standard, Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable, and support 40pin GPIO header for stacking and expansion 4. More USB Capability For Raspberry Pi 5--- Extends The PCIe Interface To 2x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals 5. Extends 1x Gigabit Ethernet port ---Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port. No driver needed 6. Network Speed Measurement---Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable and reliable network speed 7. Onboard power monitoring chip and EEPROM --- Real-time monitoring of power status, supports USB port power control via software 8. Onboard Type-C interface for 4G networking, debugging, firmware update on PC, or for external power input 9. Onboard MiniPCIe interface, support MiniPCIe 4G modules such as SIM7600G-H-PCIE and EG25-G mPCIe. Please refer the the version which includes this adapter board and SIM7600G-H-PCIE or with EG25-G-mPCIe Provide Online Development Resources /User Manual: bit.ly/4cwrOEm Package Content PCIe TO MiniPCIe GbE USB3.2 HAT+ x1 16P-Cable-40mm cable x1 Network cable ~1.5m x1 Screws pack x1
$90,05
44% OFF
$50,03
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$90,05
44% OFF
$50,03
20% OFF adicional al pagar con Deuna
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
This adapter board supports converting the PCIe interface to USB3.2, MiniPCIe and Gigabit ETH, which is compatible with Raspberry Pi 5. It is compatible with multiple MiniPCIe 4G modules or MiniPCIe devices, support Gen2 mode and high-speed communication Designed for Pi 5, with HAT+ standard, Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable, and support 40pin GPIO header for stacking and expansion More USB Capability For Raspberry Pi 5--- Extends The PCIe Interface To 2x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals Extends 1x Gigabit Ethernet port ---Equipped with RTL8153B high-performance Gigabit ETH chip, sinking design of network port. No driver needed Network Speed Measurement---Supports Raspberry Pi OS / Ubuntu / OpenWRT, etc., stable and reliable network speed Onboard power monitoring chip and EEPROM --- Real-time monitoring of power status, supports USB port power control via software. Onboard Type-C interface for 4G networking, debugging, firmware update on PC, or for external power input Onboard MiniPCIe interface, support MiniPCIe 4G modules such as SIM7600G-H-PCIE and EG25-G mPCIe. Please refer the the version which includes this adapter board and SIM7600G-H-PCIE or with EG25-G-mPCIe Provide Online Development Resources /User Manual: bit.ly/4cwrOEm
